| ブランド名: | BENENV |
| モデル番号: | MDS403 |
| Moq: | 1 Set |
| 価格: | Negotiatable |
| 配達時間: | 3-7 weeks |
| 支払条件: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |

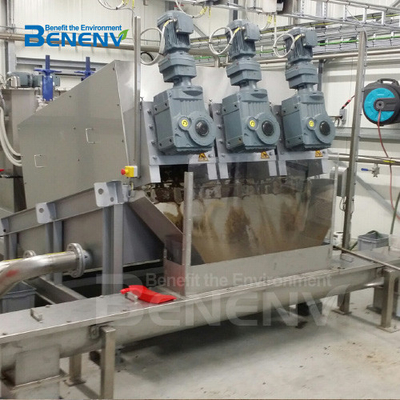

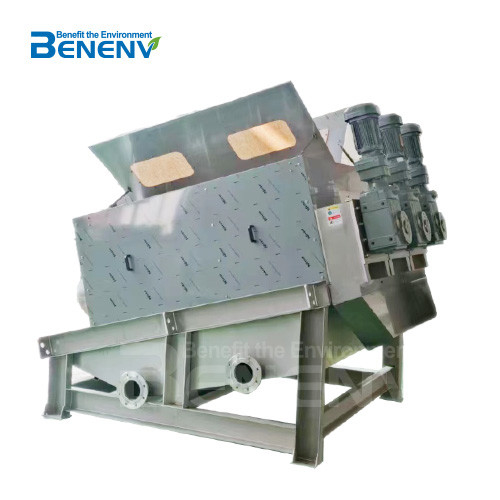

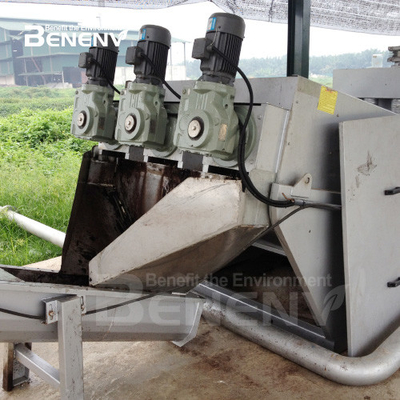

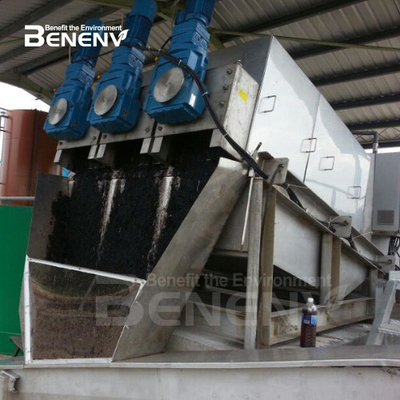

The Multi-Disk Screw Press (MDS) is a robust sludge dewatering screw press designed for efficient solid-liquid separation in wastewater treatment. As a screw press dewatering machine, it progressively thickens and dewaters wastewater sludge through a unique screw press design, combining a slow-rotating spiral shaft with free-moving rings and a rotary filter plate.
1,Screw Press Cylinder Check Point
Screw Press sludge dewatering Machine With unique one-button quick opening design, volute dewatering press easy to operate, operator can observe the internal operation of the sludge machine at any time, check the sludge thickening and dewatering effect of each section, and adjust Sludge dehydrator setting in time.
2,Screw Press Ring for Reference
Screw press machine of special ring is positioned in each zone as reference for comparison to observe the rings and to schedule the overhauling intervention after exceeding the theoretical lifespan of sludge dewatering system.
3,Pre-Sludge thickening Structure in Flocculation Tank
Pre-Sludge thickening structure is an optional module in flocculation tank to improve Sludge treatment capacity. With it, sludge can be thickened in flocculation tank; the Screw press machine capacity can be improved more than 50% when sludge dewatering screw press machine is dealing with sludge with low concentration (about/less than 1%).
| Model | DS Standard Capacity (kg/h) |
Sludge Treatment Capacity(m³/h) | ||||||
| Low Concentration | High Concentration | 2000mg/L | 4000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | 50000mg/L | |
| MDS101 | 3 | 6 | 1.5 | 0.75 | 0.6 | 0.3 | 0.24 | 0.12 |
| MDS131 | 6 | 12 | 3 | 1.5 | 1.2 | 0.6 | 0.48 | 0.24 |
| MDS132 | 12 | 24 | 6 | 3 | 2.4 | 1.2 | 0.96 | 0.48 |
| MDS201 | 12 | 20 | 6 | 3 | 2 | 1 | 0.8 | 0.4 |
| MDS202 | 24 | 40 | 12 | 6 | 4 | 2 | 1.6 | 0.8 |
| MDS301 | 30 | 60 | 15 | 7.5 | 6 | 3 | 2.4 | 1.2 |
| MDS302 | 60 | 120 | 30 | 15 | 12 | 6 | 4.8 | 2.4 |
| MDS303 | 90 | 180 | 45 | 22.5 | 18 | 9 | 7.2 | 3.6 |
| MDS351 | 60 | 120 | 30 | 15 | 12 | 6 | 4.8 | 2.4 |
| MDS352 | 120 | 240 | 60 | 30 | 24 | 12 | 9.6 | 4.8 |
| MDS353 | 180 | 360 | 90 | 45 | 36 | 18 | 14.4 | 7.2 |
| MDS354 | 240 | 480 | 120 | 60 | 48 | 24 | 19.2 | 9.6 |
| MDS401 | 100 | 170 | 50 | 25 | 17 | 8.5 | 6.8 | 3.4 |
| MDS402 | 200 | 340 | 100 | 50 | 34 | 17 | 13.6 | 6.8 |
| MDS403 | 300 | 510 | 150 | 75 | 51 | 25.5 | 20.4 | 10.2 |
| MDS404 | 400 | 680 | 200 | 100 | 68 | 34 | 27.2 | 13.6 |
| Model | Sludge Cake Discharge Height (mm) |
Size(mm) | Net Weight (kg) |
Running Weight (kg) |
Power (kw) |
Rinsing Water (L/h) |
||
| L | W | H | ||||||
| MDS101 | 215 | 1860 | 750 | 1080 | 205 | 295 | 0.2 | 24 |
| MDS131 | 250 | 1860 | 750 | 1080 | 205 | 300 | 0.2 | 24 |
| MDS132 | 250 | 1960 | 870 | 1080 | 275 | 425 | 0.3 | 48 |
| MDS201 | 350 | 2440 | 860 | 1380 | 320 | 470 | 0.3 | 32 |
| MDS202 | 350 | 2580 | 977 | 1270 | 470 | 730 | 0.6 | 64 |
| MDS301 | 495 | 3350 | 941 | 1564 | 910 | 1320 | 0.8 | 40 |
| MDS302 | 495 | 3570 | 1260 | 1670 | 1350 | 2130 | 1.2 | 80 |
| MDS303 | 495 | 3830 | 1620 | 1670 | 1820 | 2880 | 1.95 | 120 |
| MDS351 | 585 | 3900 | 1160 | 2190 | 1610 | 2210 | 1.9 | 72 |
| MDS352 | 585 | 4240 | 1550 | 2190 | 2300 | 3400 | 3.75 | 144 |
| MDS353 | 585 | 4460 | 2100 | 2190 | 3350 | 4850 | 6.0 | 216 |
| MDS354 | 585 | 4660 | 2650 | 2190 | 4500 | 6100 | 8.2 | 288 |
| MDS401 | 759 | 4356 | 1170 | 2400 | 2500 | 3400 | 2.25 | 80 |
| MDS402 | 759 | 4900 | 1640 | 2400 | 3480 | 5200 | 4.5 | 160 |
| MDS403 | 759 | 5030 | 2240 | 2400 | 4550 | 7050 | 6.7 | 240 |
| MDS404 | 759 | 5350 | 3240 | 2400 | 6550 | 9660 | 8.2 | 320 |
Q: Are You Trading Company Or Manufacture?
A: We Are Both Manufacture And Trading Company. We Have Over 30 Years' Professional Experience As a Waste Water Treatment Equipment Manufacturer And Engineering Service Enterprise.
Q : What Are Your Main Products?
A:Keywords :Sludge Dewatering Machine Equipment, Screw Type Sludge Dewatering Press Sludge Screw Press, Dewatering Sludge Machine Screw Press ,Sewage Treatment Equipment ,Sludge Treatment Plant,Screw Press Sludge Dewatering ,Dewatering Sludge,Dewatering Machine For Sludge, Dewatering Sludge Machine Screw Press, Rotary Drum Bar Screens, Equipment DAF, DAF Price ,Dissolved Air Flotation System Price, Sludge Shaftless Screw Conveyor,Chemical Dosing Device ,MBBR Price,MBBR Media,Disc Diffuser, Polymer Preparation Chemical Dosing System.
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 22,000M2 And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 30 Years Professional Experience. We Cooperate Over 1000 Customers.In China And Overseas. We Export Nearly 60 Countries All Over The World.And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates. And We Have Company In Japan , Great Technology And Great Quality.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts,Field Maintenance Repair Service.
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
Q: What About Your Produce Time?What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Money Gram.
